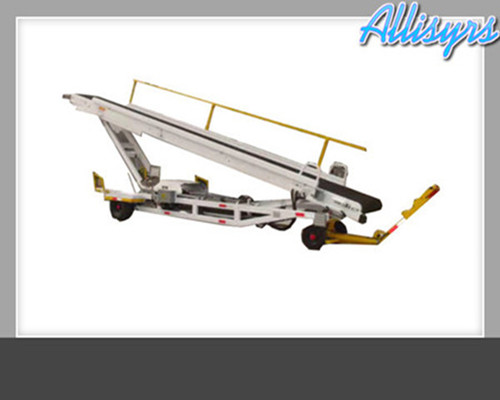

| Luggage Conveyor Belt Loader ALS-CB610 |
| Towable Conveyor Belt Loader is a kind of aircraft baggage and other bulk cargo transfer equipment. Suitable for cargo hold with its door height between 1080-4200mm. Application :A320 series, A300, A330, A340 B737 series, B747, B757,B767, B777 and other models. |
Type of brake mechanism: parking brake (electronic or hydraulic)
Tire: front wheel: 7.00-9(solid core tire)/ rear wheel; (Solid core tyre)
|
| Specification/Dimension |
| Front end height of transfering(mm) | 1200-4200 |
| Back-end height of transfering(mm) | 475-1700 |
| Vehicle Length (mm) | 9190 |
| Vehicle width (mm) | 1580 |
| Vehicle height (mm) | 1720 |
| Conveying frame specifications (L * W)/ bandwidth | 7780*800/700 |
| Ground clearance (mm) | 110 |
| Minimum turning diameter (mm) | 8550 |
| The wheelbase (mm) | 4080 |
| track width (front/rear)(mm | 1335/600 |
| Approach angle (°) | 22.5 |
| Departure angle (°) | 9.5 |
| Conveyor belt width | 700 |
| Transmission speed | 0.16-0.5 m/s |
| Conveyor belt inclination Angle (° | 29.5 |
| Maximum driving speed (km/h) | 4 |
| Total Weight (kg) | 1960 |
| Please contact us to find out more details for this Item |
