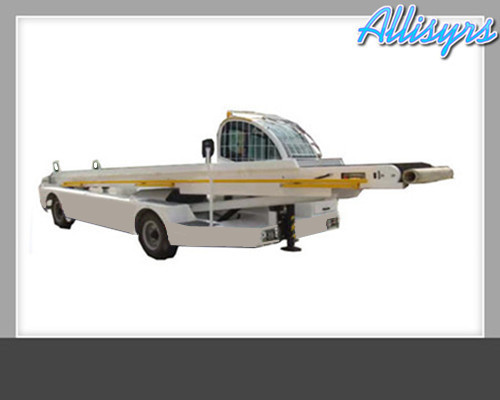

| Luggage Conveyor Belt Loader ALS-CB620 |
| Conveyor Belt Loader is a kind of aircraft baggage and other bulk cargo transfer equipment. Application:: B737 series, B747, B757, B767, B777,A320 series, A300, A330, A340 and other models. |
Cab (standard) : customized
Air conditionng (optional)
Video surveillance system (optional) : video surveillance/dashcam/intercom/reversing image/voice system
|
| Specification/Dimension |
| Front end height of transfering(mm) | 1200-4200 |
| Back-end height of transfering(mm) | 540-1300 |
| Vehicle Length (mm) | 8000 |
| Vehicle width (mm) | 2120 |
| Vehicle height (mm)Without shed/with shed | 1510/1930 |
| Ground clearance (mm) | 130 |
| Minimum turning radius (mm) | 6500 |
| The wheelbase (mm） | 1868 |
| Track width (front/rear)(mm） | 1750/1745 |
| Approach Angle (°） | 14 |
| Departure Angle (°） | 25 |
| Conveyor belt width | 700 |
| Transmission speed | 0.3-0.5m/s |
| Conveyor belt inclination Angle (°） | 30 |
| Maximum driving speed (km/h) | 30 |
| Curb Weight (kg) | 3350 |
| Please contact us to find out more details for this Item |
