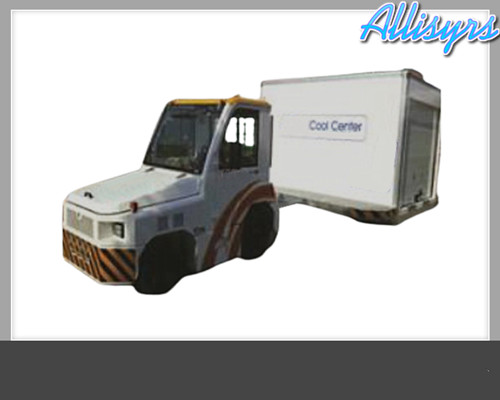

| Logistics thermal insulation Vehicle ALS-IV160 |
| Logistics thermal insulation vehicle is used to transport aviation food, medicine and other cold chain logistics services at airports, wharfs and warehouses.It is composed of baggage tractor, insulated car (bottom frame, compartment, ice bucket (frame) or independent refrigerating unit. |
| Specification/Dimension |
| Trailer | Baggage tractor |
| Vehicle Length (mm)/(excluding pull bar) | 4600 |
| Vehicle width (mm) | 3500 |
| Height (mm) | 2720 |
| Main body size (Length * Width * Height) (mm) | 3500*2890*2220 |
| Main body thickness (roof/side plate) (mm) | 70 |
| Loading capacity of underframe(T) | 7 |
| Holding time (H) (cold bucket) | 3-4 hours |
| Main body temperature (. (Cooling tank) | 15-25 |
| Ground clearance (mm) | 150 |
| Minimum turning radius (mm) | 2950 |
| Curb Weight (kg) | 3200 |
| Wheelbase (mm) | 3715 |
| Insulation chamber: customized | 70mm thick roof and side panels (insulation panels) |
| Please contact us to find out more details for this Item |
