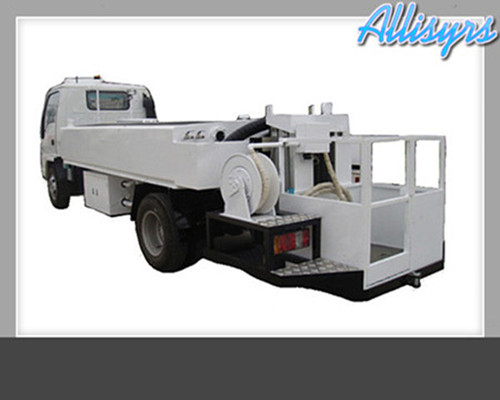

| Aircraft Sewage Water Truck ALS-ST510 |
| Aircraft sewage water truck is an airport ground special equipment that provides services for the discharge and cleaning of aircraft toilet sewage system. Applicable models: A300, A310, A320, A330, A340, B727, B737, B747, B757, B767, B777 and C919. |
| Video surveillance, reversing radar, voice alarm system, can be added. According to customer requirements. |
| Specification/Dimension |
| Water tank volume (L) | 2700 |
| Clean water Tank volume (L) | 1000 |
| Sewage water Tank volume (L) | 2000 |
| Circulating water tank volume (L) | 200 |
| Water supply flow (L/min) | 136 |
| Water supply pressure (Mpa) | 0.44 |
| Curb Weight (kg) | 3600 |
| Overall dimensions (length × width × height) | 6800*21450*1900 |
| Maximum speed (km/h) | 40 |
| Chassis wheelbase (mm) | 3360 |
| Lifting height of working platform (mm) | 400-3000 |
| Ground clearance (mm) | 200 |
| Outer diameter of channel circle (mm) | 12800 |
| Please contact us to find out more details for this Item |
