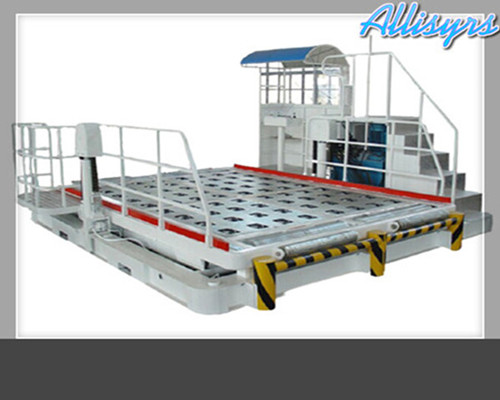

| Shovel Elevation Platform ALS-SE810 |
The platform is used in the airport cargo station and cargo center to solve the height difference between container freight vehicles and container Dolly during the transportation of containers. It ensures the connection function of truck transportationbetween the two freight stations |
| Specification/Dimension |
| Overall Size length×width×height(mm) | 4280 mm×4380 mm×1450 mm | no rain canopy |
| Work table (length×width) (mm) | 4250 mm×2800 mm |
|
The highest work table arrive (height away from the ground) | 1600 mm |
|
the lowest work table arrive (height away from the ground) | 500 mm |
|
| Work table (full load 7t) | arise speed 15 sec | descend speed 10 sec |
| Work table (no-load) | arise speed 10 sec | descend speed 15 sec |
| Work table transmission speed | 280 sec | with adjustable speed device |
| Please contact us to find out more details for this Item |
