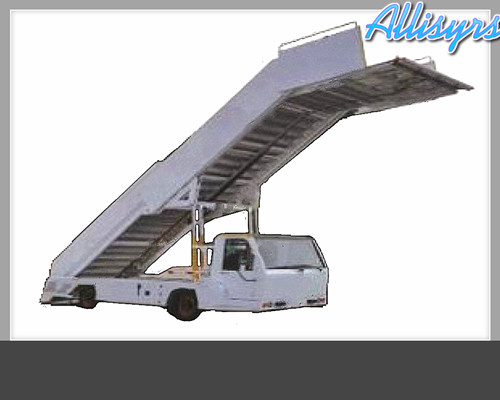

| Aircraft Passenger Stairs Vehicle ALS-PS130 |
| Aircraft Passenger Stairs (internal combustion type) is an airport equipment used for passengers to get on and off the plane. Adopting a mature chassis, the whole vehicle has advanced and reliable technical performance, reasonable structure, safe operation, complete functions, beautiful appearance and convenient maintenance. It is suitable for various aircraft with cabin door heights of 2200mm-4600mm. Apply to :A319、A320、A321、B727、B737、B757、etc. |
Main structure and configuration: Aircraft Passenger Stairs (internal combustion type) is composed of a second-class chassis, underframe, ladder body (fixed ladder and elevator), platform, guide column, hydraulic system and electrical system. |
| Specification/Dimension |
| Overall dimensions length × wide × High (mm) | 7510 × 2120 × 3180 |
| Working height of passenger stairs (mm) | 2200～4600 |
| Platform size (mm) | 3030×1820 |
| Number of passengers | 60 |
| Step Size length × wide × High (mm) | 300 x 1400 x 190 |
| The maximum inclination angle of the ladder body | 35.2º |
| Weight (kg) | 6150 |
| The stroke of the movable platform (mm) | 300 |
| Please contact us to find out more details for this Item |
