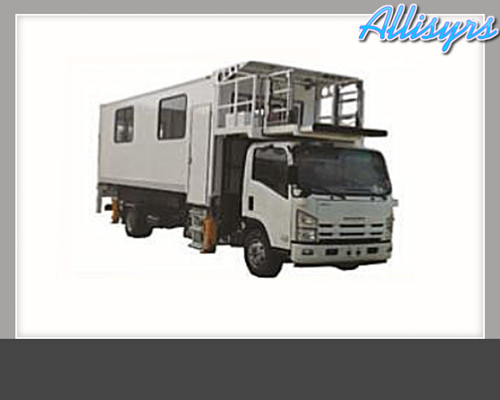

| Disabled Passenger Boarding Vehicle ALS-DB140 |
| It is a kind of airport special equipment used for passengers with mobility difficulty to get on and off airplanes. It is composed of class II automobile chassis, underframe assembly, lifting fork assembly, trunk assembly, front and rear working platform assembly, air conditioning system, hydraulic system and electrical system, etc |
Fork Lifting structure: single fork lifting and double fork lifting structure
Driving mode: full cab/half cab |
| Specification/Dimension |
| Chassis wheelbase (mm) | 3815 |
| Platform working height (mm) | 2400-5200 |
| Rated load of body(kg) | 1500 |
| Rated load of front platform (kg) | 1000 |
| Rated load of rear lifting platform (kg) | 400 |
| Platform left and right adjustment range (mm) | 0-600 |
| Platform expansion and adjustment range (mm) | 0-500 |
| Fixed platform size (L * W) (mm) | 1200*2280 |
| Size of mobile platform (L * W) (mm) | 900*1300 |
| Rear lifting platform (L * W) (mm) | 1480*2190 |
| Rear lifting platform harbor Perimeter (mm) | 0-1400 |
| Curb Weight (kg) | 7200 |
| Dimensions (L * W * H) (mm) | 6900*2400*3800 |
| Please contact us to find out more details for this Item |
